Painted OSHA Blue.
Material Handling Carts Bunk Trucks
110486 Specs: (4) 1” x 43” corner posts removable (4) Phenolic caster (2 rigid/2 swivel)
110485 Specs: Fork Pockets, (4) corner post are 2” square removable (4) 6” Phenolic swivel casters and (2) 10” load wheels all Phenolic to turn in radius

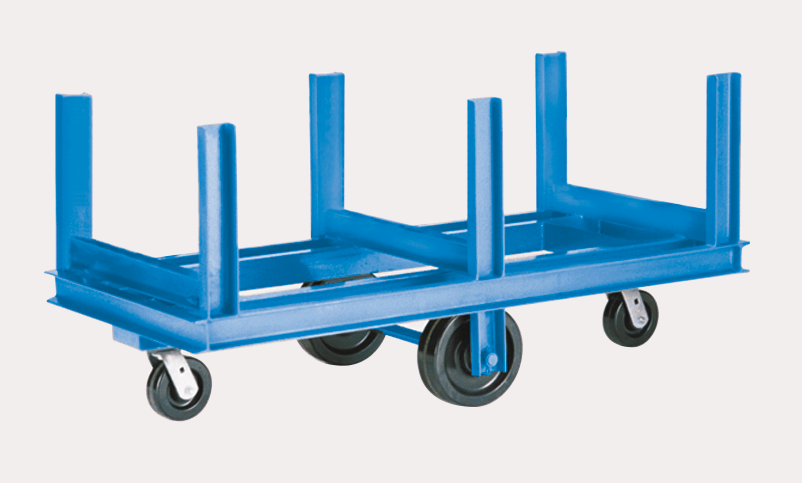

Tube – Bar – Rod – Stock Trucks Standard Model

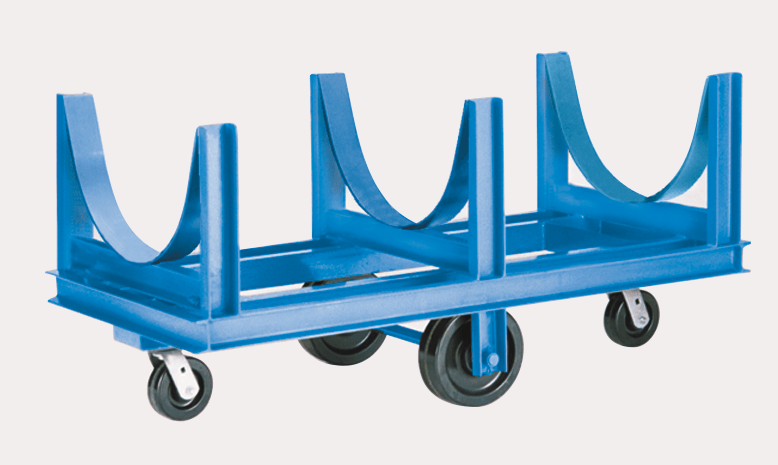

Saddle Model (Cradle)
Specs:
Constructed with 3” channel frames three cradles are standard. 8” x 2” swivel Phenolic casters and 10” x 3” Phenolic load wheels for 4,000# load capacity.
10,000# load capacity when using 12”x3” Phenolic Load Wheels. Trucks turn on their own length.
Balance load equally. Use on flat, hard surfaces only.
Elevated holding to accommodate forklift loading/unloading, or overhead crane/hoist
Bar Rod Truck Application: Perfect to staging materials at each work station or for pulling inventory. Safely transport and stores pipes, bars, angles, wooden posts, rails or other long material.
Specs:
1 ½” square tube 11ga. with 13ga. Steel deck 8”x2”.
8”x2” Phenolic Casters (2 rigid/ 2 swivel)
Steel Pan Dolly Part No Dims L W H Wt Wt. Capacity 143312 24” 18” 3.75 22 840 143322 30” 18” 3.75 23 840 143372 36” 24” 3.75 32 840
Specs: Single formed deck 13 gauge steel, (4) 3” polyolefin swivel casters
Platform Truck Part No Dims L W H Wt Capacity Type Caster Type Deck Height CAD 102775 36” 24” 8.75 60 1000 HD 5” x 1 ¼” Polyurethane casters 8 ¾” Download PDF 102795 48” 24” 8.75 77 1000 HD 5” x 1 ¼” Polyurethane casters 8 ¾” Download PDF 102845 60” 30” 8.75 86 1000 HD 5” x 1 ¼” Polyurethane casters 8 ¾” Download PDF 102855 72” 30” 8.75 115 1000 HD 5” x 1 ¼” Polyurethane casters 8 ¾” Download PDF 10277B 36” 24” 10.25 85 2000 EHD 6” x 2” moldon rubber casters 10 ¼” Download PDF 10279B 48” 24” 10.25 102 2000 EHD 6” x 2” moldon rubber casters 10 ¼” Download PDF 10284B 60” 30” 10.25 121 2000 EHD 6” x 2” moldon rubber casters 10 ¼” Download PDF 10285B 72” 30” 10.25 140 2000 EHD 6” x 2” moldon rubber casters 10 ¼” Download PDF
Specs:
(1) piece 13ga. formed steel deck with 2” lips down, 11ga. formed steel caster mounting plate, removeable pipe handle
Removable 2 slat pipe push handle. Casters bolted on.
Pneumatic Tired Platform Truck
Specs:
Rubber matting is available for non-slip surface
(1) piece 13 gauge formed steel deck with 2” lips down, 11 gauge formed steel caster mount, removable slat handle
8” pneumatic casters (2 rigid/2 swivel) are bolted on, 12 ¾” deck height
Machine Stands
Specs:
13 gauge sheet steel decks with 2” lips formed down
1 ½” x 1 ½” x 3/16” angle framework
22” shelf spacing, 1000 lb capacity
Heavy Duty Die Storage
Specs:
Corner posts are made of 2” angle, shelves are formed from (1) piece of 13 gauge sheet metal
Load capcity is 1600 lbs per shelf with even distribution

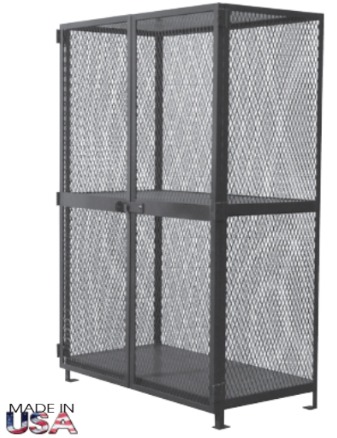

Industrial Storage Locker
Part No Dims L W H Wt Shelves 383510 24” 48” 78” 255 0 383520 24” 48” 78” 285 1 383530 24” 48” 78” 325 2 383710 30” 60” 78” 315 0 383720 30” 60” 78” 365 1 383730 30” 60” 78” 420 2
Specs:
Manufactured with ¾–13ga. Flattened expanded metal, 1.25” x 1.25” x 1/8” angle frame
11ga. formed metal base double hinge doors with padlock hasp
Available with no shelf, or with 1 or 2 shelves. Optional coat hooks (3) with support bracket
Security Package Truck – 1 shelf on bottom
Part No Dims L W H Wt Wt. Capacity 14119C 48” 24” 72 ¾” 258 2000 14124C 60” 30” 72 ¾” 358 2000 14127C 60” 36” 72 ¾” 367 2000
Specs:
Shelves 13ga. formed steel shelves with 2” lip
Wire mesh: 2”x1”x 10ga. Woven, Frame 1 ½” x 1 ½” x 3/16” angle
Caster mounts 11 gauge formed channel
Casters 6” x 2” phenolic bolted on (2 rigid/2 swivel)

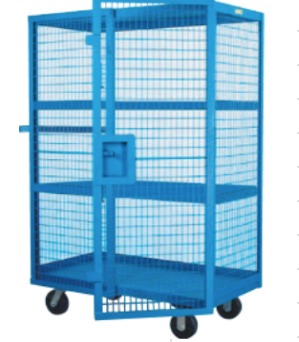

Security Package Truck – 3 Shelves with 15 ½” spacing
Part No Dims L W H Wt Wt. Capacity 14139C 48” 24” 72.75 340 2000 14144C 60” 30” 72.75 472 2000 14147C 60” 36” 72.75 525 2000
Specs:
Shelves 13ga. formed steel shelves with 2” lip
Wire mesh: 2”x1”x10ga. woven, Frame 1 ½” x 1 ½” x 3/16” angle
Caster mounts 11 gauge formed channel
Casters 6” x 2” phenolic bolted on (2 rigid/2 swivel)

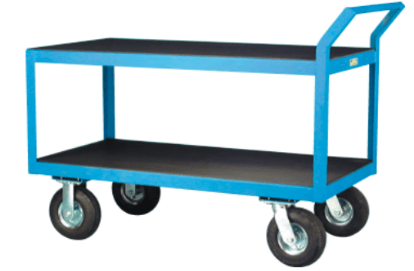

Instrument Truck
2 Shelves 1200 lb Capacity 39 ¾” High 31 ¾” Deck 16” Shelf Spacing
Part No Dims L W H Wt 10337T 36” 24” 39 ¾” 137 10339T 48” 24” 39 ¾” 157 10344T 60” 30” 39 ¾” 211 10347T 60” 36” 39 ¾” 235
2 Shelves 1200 lb Capacity 36” High 20 ¼” ” Shelf Spacing
Part No Dims L W H Wt 10317T 36” 24” 36” 137 10319T 48” 24” 36” 156 10324T 60” 30” 36” 210 10327T 60” 36” 36” 233

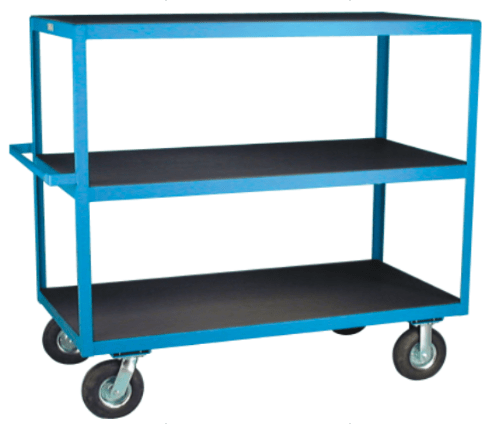

3 Shelves 1200 lb Capacity 57 ¾” High 20” Shelf Spacing
Part No Dims L W H Wt 10357T 36” 24” 57 ¾” 183 10359T 48” 24” 57 ¾” 214 10364T 60” 30” 57 ¾” 292 10367T 60” 36” 57 ¾” 325
Portable Work Benches 1000 lb capacity
Part No Dims L W H Wt Shelves Shelf Spacing Casters CAD 101975 36” 24” 30.75 99 2 20” 5” x 1 ¼” Polyurethane casters Download PDF 101995 48” 24” 30.75 117 2 20” 5” x 1 ¼” Polyurethane casters Download PDF 102045 60” 30” 30.75 160 2 20” 5” x 1 ¼” Polyurethane casters Download PDF 102055 72” 30” 30.75 180 2 20” 5” x 1 ¼” Polyurethane casters Download PDF 102075 60” 36” 30.75 183 2 20” 5” x 1 ¼” Polyurethane casters Download PDF 102085 72” 36” 30.75 211 2 20” 5” x 1 ¼” Polyurethane casters Download PDF 102575 36” 24” 30.75 128 3 9” 5” x 1 ¼” Polyurethane casters Download PDF 102595 48” 24” 30.75 155 3 9” 5” x 1 ¼” Polyurethane casters Download PDF 102645 60” 30” 30.75 217 3 9” 5” x 1 ¼” Polyurethane casters Download PDF 102655 72” 30” 30.75 247 3 9” 5” x 1 ¼” Polyurethane casters Download PDF 102685 60” 36” 30.75 250 3 9” 5” x 1 ¼” Polyurethane casters Download PDF 102695 72” 36” 30.75 287 3 9” 5” x 1 ¼” Polyurethane casters Download PDF
Extra Heavy Duty 2000 lb capacity 2 shelves with 20” spacing 6” x 2” phenolic casters
Super Heavy Duty 4000 lb capacity 2 shelves with 20” spacing 8” x 2” phenolic casters
Shelf Truck 2000 lb capacity
Specs:
13ga. sheet steel with 2” lip down
1 ½” x 1 ½” x 3/16” angle framework
11ga. formed steel caster mounts and push handle on swivel
caster end 6” x 2” phenolic casters are bolted on
Shelf Truck 1000 lb capacity
Part No Dims L W H Wt Shelves Shelf Spacing 100175 36” 24” 35 ¼” 91 2 24” 100195 48” 24” 35 ¼” 109 2 24” 100245 60” 30” 35 ¼” 151 2 24” 100275 60” 36” 35 ¼” 173 2 24” 100285 72” 36” 35 ¼” 198 2 24” 100565 36” 24” 35 ¼” 129 3 12” 100585 48” 24” 35 ¼” 155 3 12” 100635 60” 30” 35 ¼” 216 3 12” 100665 60” 36” 35 ¼” 248 3 12” 100675 72” 36” 35 ¼” 285 3 12”
Specs:
13ga. steel shelves with 2” lip up
1 ½” x 1 ½” x 3/16” angle framework
Push handle on swivel caster end
5” x 1 ¼” Polyurethane casters
2 rigid / 2 swivel casters bolted on

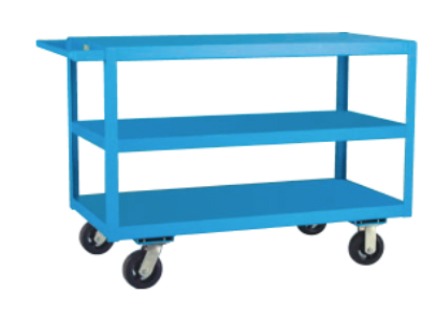

Extra Heavy Duty 2000 lb capacity
Part No Dims L W H Wt Shelves Shelf Spacing 10036C 36” 24” 36.25 124 2 24” 10038C 48” 24” 36.25 144 2 24” 10043C 60” 30” 36.25 200 2 24” 10076C 36” 24” 36.25 153 3 12” 10078C 48” 24” 36.25 179 3 12” 10083C 60” 30” 36.25 265 3 12”
Specs:
13ga. reinforced steel shelves with 2” lip up
1 ½” x 1 ½” x 3/16” structural angle corners
Push handle on swivel caster end
6” x 2” Phenolic casters
2 rigid / 2 swivel casters bolted on for easy replacement

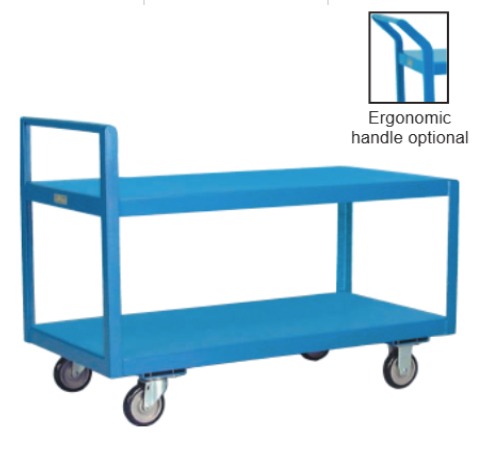

Low Profile Trucks 1000 lb capacity 26 ¾” deck height
Part No Dims L W H Wt Handle Type 101175 36” 24” 34 ¾” 103 Standard 101195 48” 24” 34 ¾” 120 Standard 101245 60” 30” 34 ¾” 164 Standard 101255 72” 30” 34 ¾” 184 Standard 101275 60” 36” 34 ¾” 188 Standard 101285 72” 36” 34 ¾” 213 Standard 100975 36” 24” 34 ¾” 103 Kickback 100995 48” 24” 34 ¾” 121 Kickback 101055 60” 30” 34 ¾” 164 Kickback 101065 72” 30” 34 ¾” 185 Kickback 101085 60” 36” 34 ¾” 189 Kickback 101095 72” 36” 34 ¾” 214 Kickback
Specs:
13ga. shelves spaced 16” apart
2” lip turned down
1 ½” x 1 ½” x 3/16” angle framework
Handle on swivel caster end 8” above top deck
5” x 1 ¼” Polyurethane casters are bolted on for easy replacement

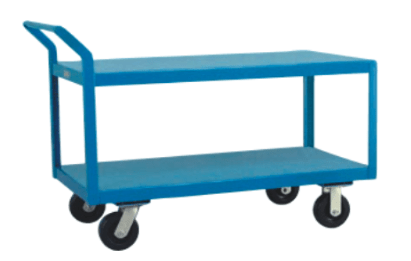

Extra Heavy Duty 4000 lb capacity 28 ¼” deck height, ergonomic handle
Part No Dims L W H Wt Wt. Capacity Casters 10137C 36” 24” 36 ¼” 130 4000 6” x 2” Phenolic 10139C 48” 24” 36 ¼” 150 4000 6” x 2” Phenolic 10144C 60” 30” 36 ¼” 197 4000 6” x 2” Phenolic 10147C 60” 36” 36 ¼” 221 4000 6” x 2” Phenolic 10148C 72” 36” 36 ¼” 249 4000 6” x 2” Phenolic
Super Heavy Duty 4000 lb capacity 30 ¼” deck height
Part No Dims L W H Wt Wt. Capacity Casters 10137L 36” 24” 38 ¼” 135 4000 8” x 2” Phenolic 10139L 48” 24” 38 ¼” 155 4000 8” x 2” Phenolic 10144L 60” 30” 38 ¼” 202 4000 8” x 2” Phenolic 10147L 60” 36” 38 ¼” 226 4000 8” x 2” Phenolic 10148L 72” 36” 38 ¼” 254 4000 8” x 2” Phenolic
Low Profile Trucks 1000 lb capacity
Part No Dims L W H Wt Wt. Capacity Casters 101775 36” 24” 34 ¾” 110 1000 5” x 1 ¼” Polyurethane 101795 48” 24” 34 ¾” 127 1000 5” x 1 ¼” Polyurethane 101845 60” 30” 34 ¾” 172 1000 5” x 1 ¼” Polyurethane 101875 60” 36” 34 ¾” 197 1000 5” x 1 ¼” Polyurethane 101885 72” 36” 34 ¾” 222 1000 5” x 1 ¼” Polyurethane

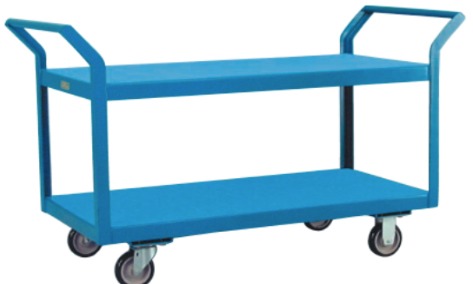

Dual Handle Heavy Duty 1000 lb capacity deck height 26 ¾”
Part No Dims L W H Wt Wt. Capacity Casters 101775 36” 24” 34 ¾” 110 1000 5” x 1 ¼” Polyurethane 101795 48” 24” 34 ¾” 127 1000 5” x 1 ¼” Polyurethane 101845 60” 30” 34 ¾” 172 1000 5” x 1 ¼” Polyurethane 101875 60” 36” 34 ¾” 197 1000 5” x 1 ¼” Polyurethane 101885 72” 36” 34 ¾” 222 1000 5” x 1 ¼” Polyurethane
Specs:
Dual kick back push handles are 8” above top deck
16” shelf spacing
Casters (2 swivel / 2 rigid)

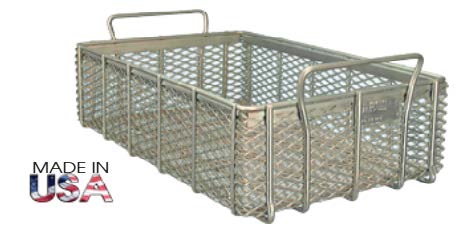

Parts Baskets Marlin Stainless Steel Wire Baskets
Part No Mesh Size Dims L W H Handle Height Wt 630010 ¼” 16” 10” 4 ½” 6” 7 ½ 630020 ½” 16” 10” 4 ½” 6” 7 ¼ 630030 ¼” 21” 13 ¼” 6” 7 ½” 11 ¾ 630040 ½” 21” 13 ¼” 6” 7 ½” 10 ¾ 630050 ½” 24” 13 ¼” 6” 7 ½” 12 ¾
Marlin Steel Wire Baskets
Part No Mesh Size Dims L W H Handle Height Wt 630210 ¼” 16” 10” 4 ½” 6” 8 630220 ½” 16” 10” 4 ½” 6” 8 630230 ¼” 21” 13 ¼” 6” 7 ½” 12 630240 ½” 21” 13 ¼” 6” 7 ½” 11 630250 ½” 24” 13 ¼” 6” 7 ½” 13
Specs:
Heavy duty basket with square handles, two mesh sizes ¼” and ½” flattened expanded metal
Baskets stack 5 high at 75 lbs per basket
Handle adds 1-¾” to overall height
