Jesco® Industries will custom fabricate these panels to meet your specific requirements. Available in diamond, rectangular and square mesh with or without standoffs. Standard frame is 1″ x 1/2″ channel with 10 gauge woven wire mesh.
Other size framing materials and mesh are available. Banding is required for panels with standoffs – specify weld pattern and types of weld finish desired. All types of finishes available.
Note: Always check and follow local building codes for your area.

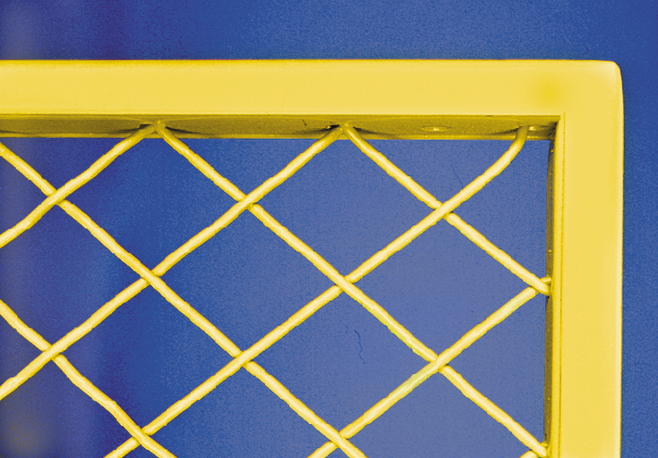

Diamond mesh
Square mesh
Panel with hemmed edge
Damond mesh with standoff
Square mesh with Standoff
Panel capped with channel
A
No evidence of weld joint.
B
Finish sanded – Welds undercut & pin holes
C
Partially finished, spatter removed.
D
As applied, no finish.
Infill Panel Frame Options
1/2″ x 1″ x 1/8″ channel frame
1/2″ x 1″ x 1/” channel frame with 5/8″ x 11/4″ x 1/8″ channel cap.
1/2″ x 1″ x 1/8″ channel framewith 1/8″ x 1″ flat bar cap.
11/2″ x 16 gauge U-edgingwith 2″ reveal.
