Disclaimer: ASME/ANSI Standard for Elevating Personnel B56.8.25.1 Floor dimensions which shall not exceed two times the load center distance listed on the rough terrain forklift truck nameplate. Jesco® Industries makes no guarantees as to the fork truck manufacturer generating a new date plate as required by OSHA.

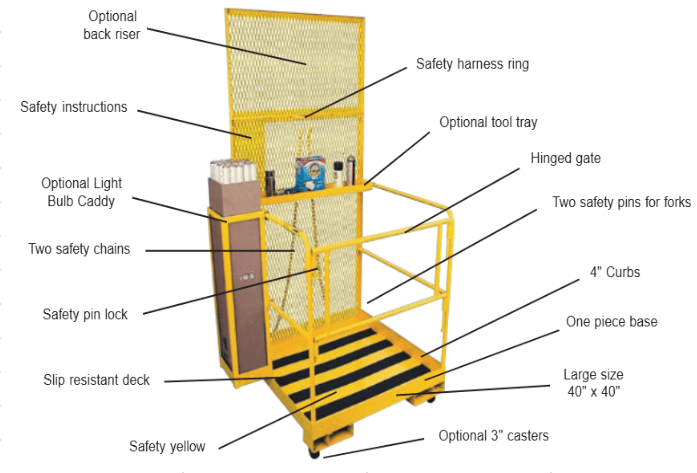

Standard Work Platform
Standard Work Platform Specs:
Base and 4” side curbs formed from one piece of steel
Back Panel is ½-#13 expanded metal mesh
Deck has slip resistant surface
Fork Channels are on 25” centers, tube opening 7” x 2 ¾”
Hinged gate with pin safety lock, safety pins behind each fork and heavy duty chains welded to back of frame of platformOptions for Standard Work Platform
Part No
Dims L
W
H
Wt
Capacity
184002
40”
40”
63”
203
1000
Options for Standard Work Platform
Part No
Dims L
W
H
Wt
184003
6
Set of 4 3” polyolefin casters (installed)
184004
40 ½”
24”
23
High Back Riser w/ Mounting Hardware
184005
9 ¾”
10 ¾”
38”
26
Light Bulb Caddy
184006
6”
37 7/8”
2”
11
Tool Tray

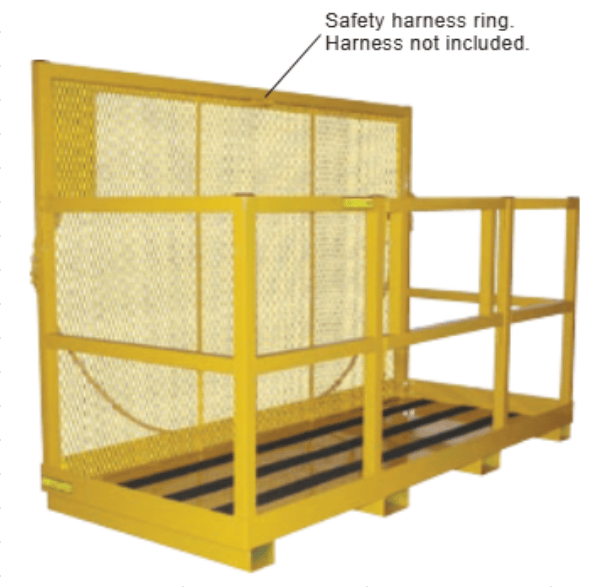

Multi Person Work Platform
2” square tube construction base and 4” side curbs are formed from one piece of heavy gauge steel
Back Panel is ½-#13 expanded metal mesh
Deck has slip resistant surface
Hinged gate with pin safety lock, safety pins behind each fork and heavy duty chains welded to back of frame of platform
Fork Channels are on 29” centers tube opening 7” x 2-¾”
Safety harness ring at center of back panel
Part No
Dims L
W
H
Wt
Capacity
184030
72”
40”
63”
420
1200
184040
96”
40”
63”
600
1500
184050
120”
40”
63”
800
1800
Secure Your Equipment
Jesco fabricated enclosures are built to last and will keep the area you’ve chosen to isolate, secure. If you’re looking for ways to customize your enclosure, our team of custom metal fabricators in Litchfield, MI, have constructed several entrance options for you to choose from. Contact us online to request a free quote
